Wall Paneling · modern bedroom

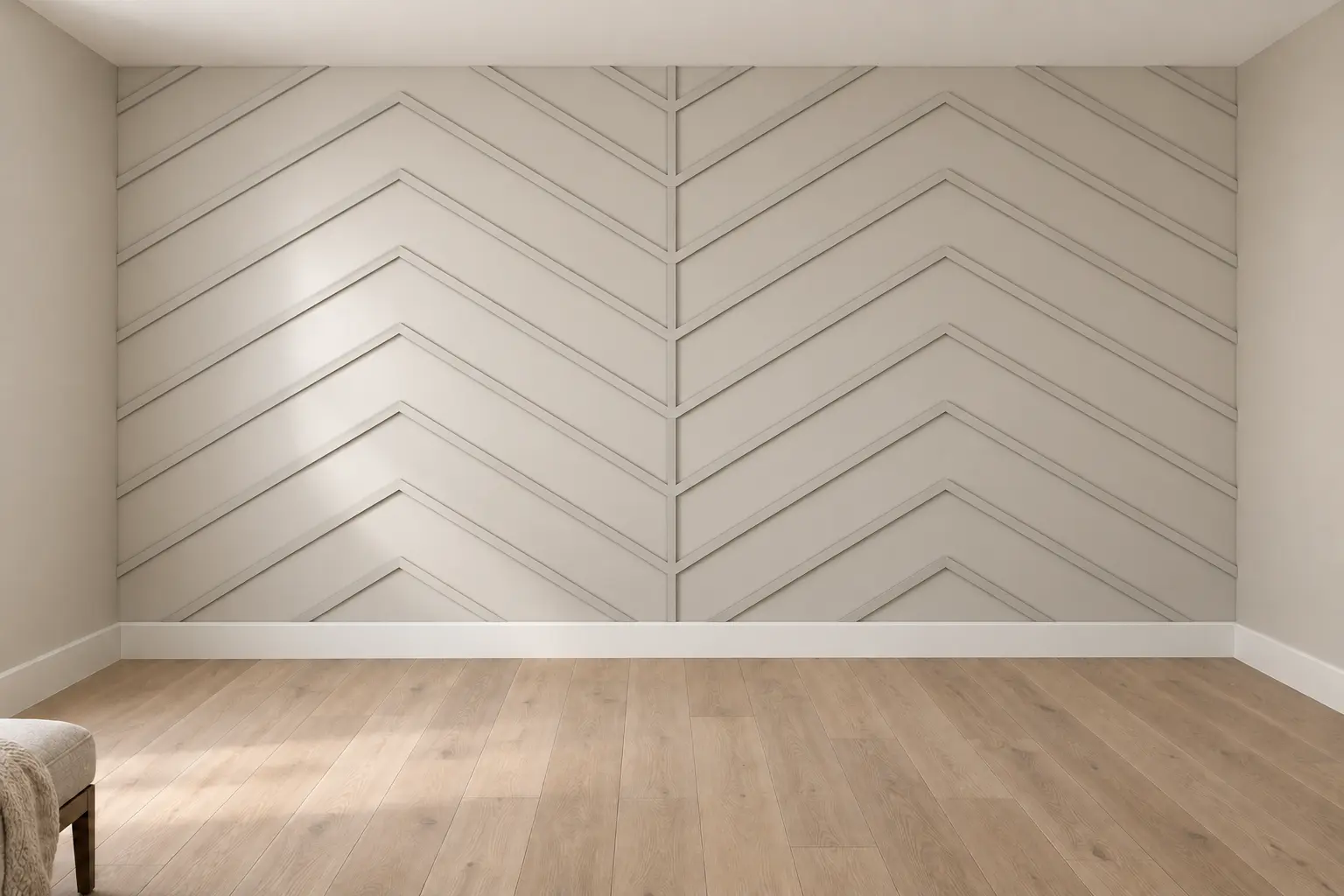

Chevron Batten Wall
Bring this look to your home or new build. Abel helps define the materials, measure the space and coordinate the agreed installation.
Project-specific quote after review. Final dimensions, preparation, finish work and installation are confirmed for your space.
Design materials and measurements
1 x 2 battens create stacked 60 degree chevrons, 18 in vertical pitch, mirrored about the wall centerline with 3 in clear gaps.
- Material / finish
- painted warm gray satin
- Default species
- Primed MDF
- Nominal sizes
- Planning basis 144 in W × 108 in H; field measurement required
- Milled parts
- 4
- Material package
- ASM-WALL-AW-16-MAT
- Labor package
- ASM-WALL-AW-16-INST
Installed labor scope
- Field measure and site-condition reviewLAB-WALL-SURVEY-EA1 per wall group
- Mobilization, protection and containmentLAB-WALL-PROTECT-EA1 per mobilization
- Substrate prep, flattening and patchingLAB-WALL-PREP-SFNet treated SF
- Pattern layout, datum setup and elevation verificationLAB-WALL-LAYOUT-EA1 per wall
- Install applied trim, battens, rails and mouldingsLAB-FLD-TRIM-LFInstalled trim/batten LF
- Prep, prime, caulk and apply two finish coatsLAB-FIN-PAINT-SFCalculated finishable surface SF
- Final detail, cleanup and turnoverLAB-WALL-CLEAN-EA1 per project
Activities are tied to this installed package. Crew size, production rates, minimums and sell rates remain estimator-approved quote inputs.
Baseline material package
- Primary millworkMAT-MDF-1X2-PR1 planning line; LF quantity by field takeoff
- Installation consumablesCONS-FAST-ADH1 planning line; SET quantity by field takeoff
- Joint finishingCONS-CAULK-FILL1 planning line; SET quantity by field takeoff
- FinishFIN-PAINT-SYSTEM1 planning line; SF quantity by field takeoff
Planning codes and baseline purchase quantities are tied to this design. Spruce item numbers, current pricing and field-adjusted quantities are confirmed during estimating.
Design reference only. Exact products, quantities, fabrication and installation need project review before ordering.
Plan your measurements
Add the room, wall or opening sizes for this look. Your measurements help us review the material package and any installation you request.
Plan this selection
Choose what you are measuring, then enter its size. Use a separate group for each different wall, room or opening.
This design is awaiting material and pricing review. The quantities below are preliminary and must be checked before ordering. Request a reviewed material and installation quote.
Planning package codes, component specifications, waste factors and labor activities are tied to this design. Exact active Spruce item numbers, purchase units, labor rates and field-adjusted quantities require estimator approval before ordering or quoting.
Size group 1 · 1 identical item
| Component | Quantity | Material |
|---|---|---|
| Primary millwork1×2 chevron battens · Primed MDF | Detail review requiredPurchase quantity: review requiredQuote required | Quote required |
| Installation consumablesFastener and adhesive system compatible with substrate · Primed MDF | Detail review requiredPurchase quantity: review requiredQuote required | Quote required |
| Joint finishingFill nail holes and caulk paint-grade perimeters · Primed MDF | Detail review requiredPurchase quantity: review requiredQuote required | Quote required |
| FinishPrimer plus two finish coats to approved color/sheen · Primed MDF | Detail review requiredPurchase quantity: review requiredQuote required | Quote required |
Installation and delivery require a separate quote. Stock lengths, cuts, fasteners, finishing and site conditions are confirmed during review.
What needs review
- This component’s quantity formula needs a reviewed construction detail.
- This design’s bill of materials and public pricing need verification.
Copy your measurements, then paste them into the project notes on the request form. Your design reference is included automatically.
