Wall Paneling · Feature wall with integrated flush door
Hidden Door In Shaker Panel Wall
Bring this look to your home or new build. Abel helps define the materials, measure the space and coordinate the agreed installation.
Project-specific quote after review. Final dimensions, preparation, finish work and installation are confirmed for your space.
Design materials and measurements

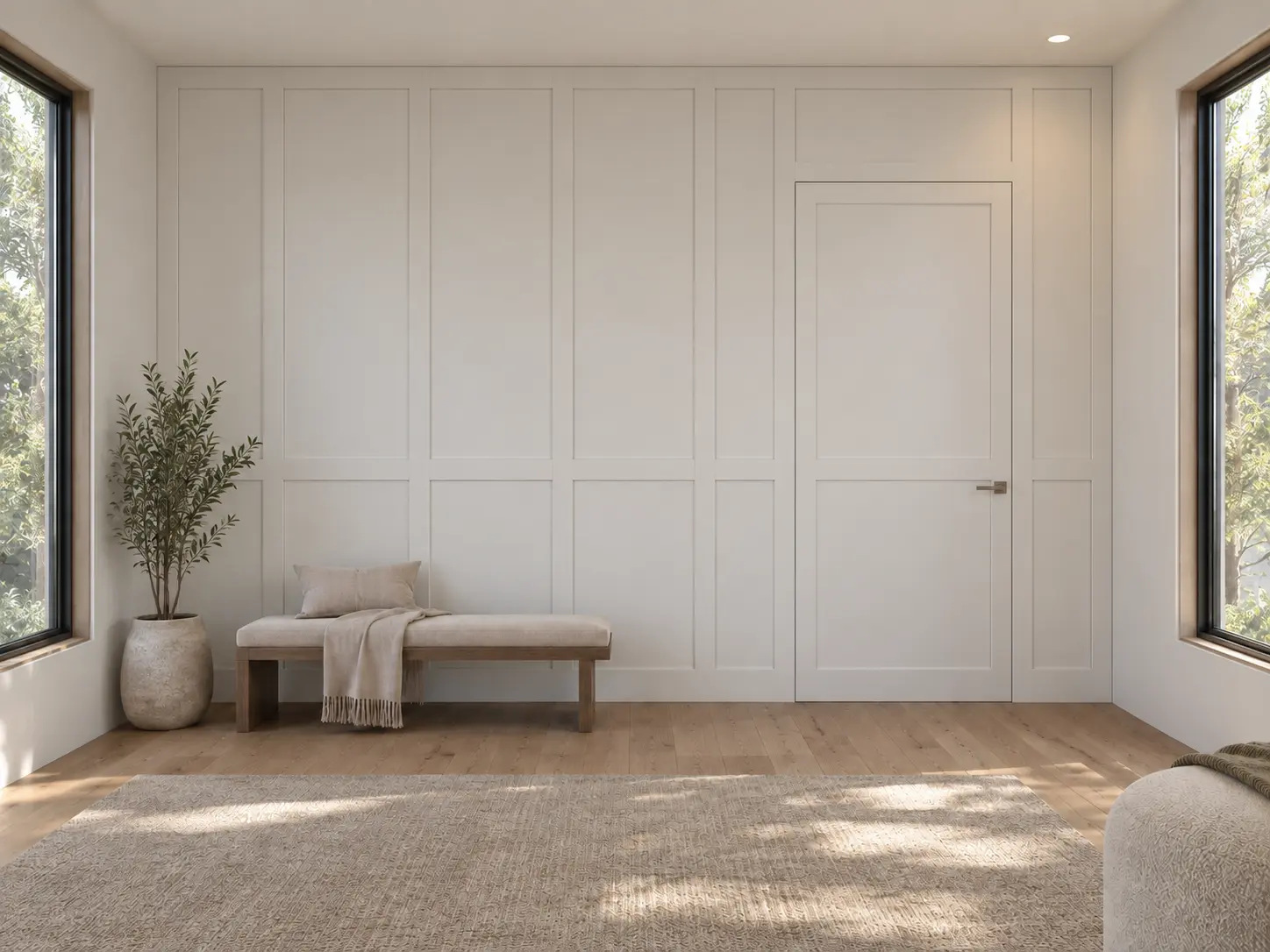

Lay out a full-wall shaker grid so the door edges fall on stile centerlines. Use concealed pivots and preserve the same panel proportions across the leaf.
- Material / finish
- Painted MDF panels with concealed pivot hardware
- Default species
- Paint grade MDF
- Nominal sizes
- 12 ft wide by 16 ft deep room, 9 ft flat ceiling, full 12 ft north feature wall with a 3 ft by 8 ft flush door leaf occupying x 8 ft to x 11 ft. Integrated door is the only feature-wall opening; two side-wall windows remain fixed; 1/8 in finished door reveal after treatment. The 3 ft by 8 ft hidden door occupies the right third; both leaf edges coincide with shaker stile centerlines. Field measurement required before material release.
- Milled parts
- 6
- Material package
- ASM-FINISH-F33-MAT
- Labor package
- ASM-FINISH-F33-INST
- Planning crew hours
- 44
Installed labor scope
- Field measure and site-condition reviewLAB-WALL-SURVEY-EA1 per design area
- Mobilization, protection and containmentLAB-WALL-PROTECT-EA1 per mobilization
- Substrate prep, flattening and patchingLAB-WALL-PREP-SFNet treated SF
- Pattern layout, datum setup and elevation verificationLAB-WALL-LAYOUT-EA1 per design area
- Custom shop fabrication and dry fitLAB-SHOP-MILL-HRShop hours from approved cut list
- Install panel, sheet or plank finish systemLAB-FLD-PANEL-SFNet installed panel SF
- Install beams, trim, rails, stiles and mouldingsLAB-FLD-TRIM-LFInstalled millwork LF
- Prep, prime, caulk and apply two finish coatsLAB-FIN-PAINT-SFCalculated finishable surface SF
- Final detail, cleanup and turnoverLAB-WALL-CLEAN-EA1 per project
Activities are tied to this installed package. Crew size, production rates, minimums and sell rates remain estimator-approved quote inputs.
Baseline material package
- Shaker panel substrateMDF-3/4-4X81 planning line; SF quantity by approved field takeoff
- Flush door substrateMAT-FLUSH-DOOR-SLAB1 planning line; EA quantity by approved field takeoff
- Concealed door hardwareHDW-HIDDEN-DOOR1 planning line; SET quantity by approved field takeoff
- Installation consumablesCONS-FAST-ADH1 planning line; SET quantity by approved field takeoff
- Joint finishingCONS-CAULK-FILL1 planning line; SET quantity by approved field takeoff
- Paint finishFIN-PAINT-SYSTEM1 planning line; SF quantity by approved field takeoff
Planning codes and baseline purchase quantities are tied to this design. Spruce item numbers, current pricing and field-adjusted quantities are confirmed during estimating.
Design reference only. Exact products, quantities, fabrication and installation need project review before ordering.
Plan your measurements
Add the room, wall or opening sizes for this look. Your measurements help us review the material package and any installation you request.
Plan this selection
Choose what you are measuring, then enter its size. Use a separate group for each different wall, room or opening.
This design is awaiting material and pricing review. The quantities below are preliminary and must be checked before ordering. Request a reviewed material and installation quote.
Planning assembly SKUs, component codes, construction geometry, cut-list rules, waste factors and labor activities are tied to this design. Exact active Spruce item numbers, purchase units, verified quantities, appliance clearances and labor rates require estimator approval before ordering or quoting.
Size group 1 · 1 identical item
| Component | Quantity | Material |
|---|---|---|
| Shaker panel substrate3/4 in paint-grade MDF panels and rails · Paint grade MDFComponent 1 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
| Flush door substratePaint-grade flush door slab · Paint grade MDFComponent 2 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
| Concealed door hardwareConcealed pivot and latch package · Paint grade MDFComponent 3 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
| Installation consumablesCompatible adhesive, finish fasteners, shims and blocking accessories · Paint grade MDFComponent 4 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
| Joint finishingPaint-grade filler, caulk and abrasives · Paint grade MDFComponent 5 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
| Paint finishPrimer plus two approved finish coats · Paint grade MDFComponent 6 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
Installation and delivery require a separate quote. Stock lengths, cuts, fasteners, finishing and site conditions are confirmed during review.
What needs review
- This component’s quantity formula needs a reviewed construction detail.
- Set contents and quantities require a reviewed assembly definition.
- This design’s bill of materials and public pricing need verification.
Copy your measurements, then paste them into the project notes on the request form. Your design reference is included automatically.
