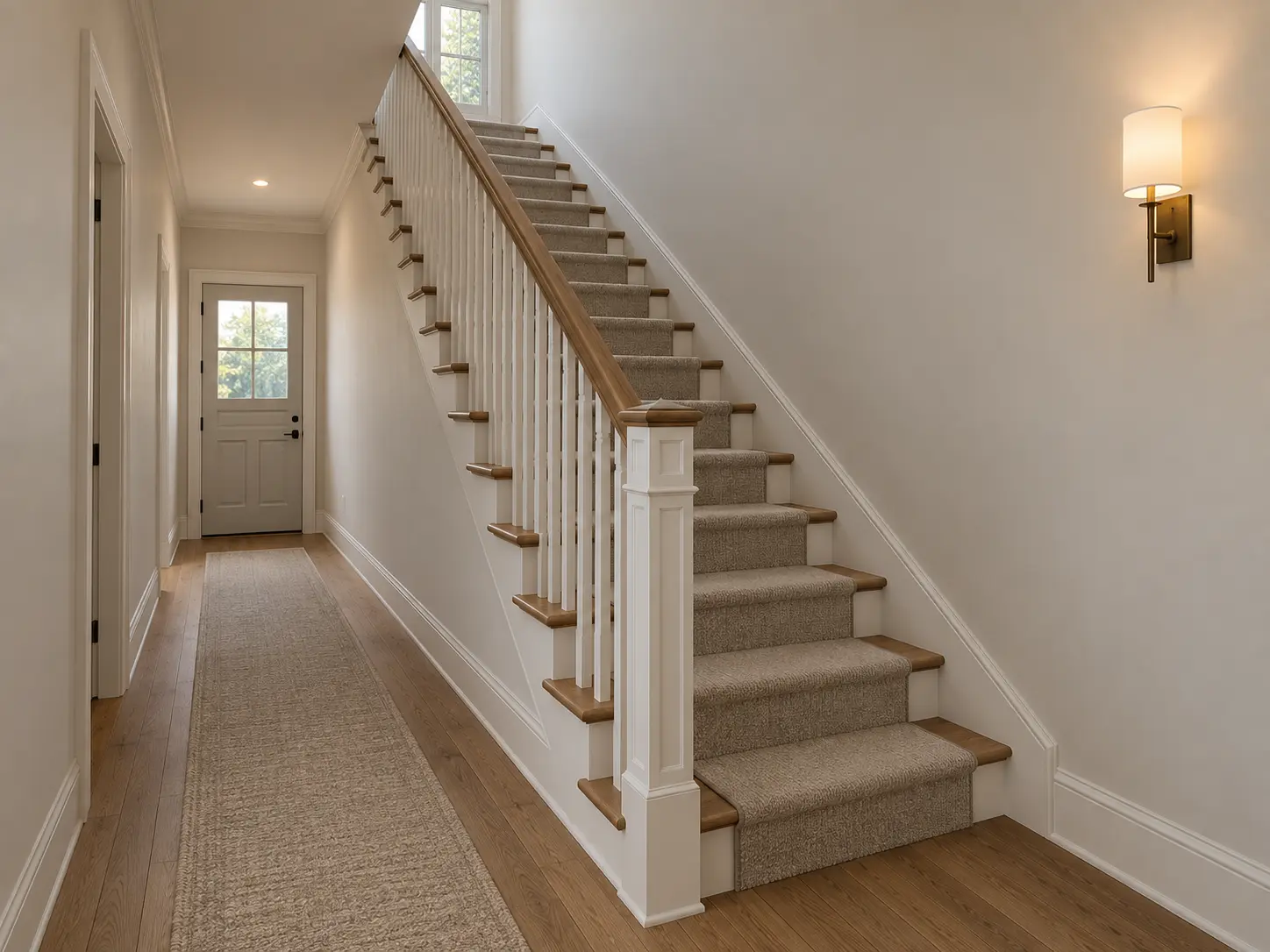

Wall Paneling · Straight run stair hall
Stair Wall Graduated Box Molding
Bring this look to your home or new build. Abel helps define the materials, measure the space and coordinate the agreed installation.
Project-specific quote after review. Final dimensions, preparation, finish work and installation are confirmed for your space.
Design materials and measurements

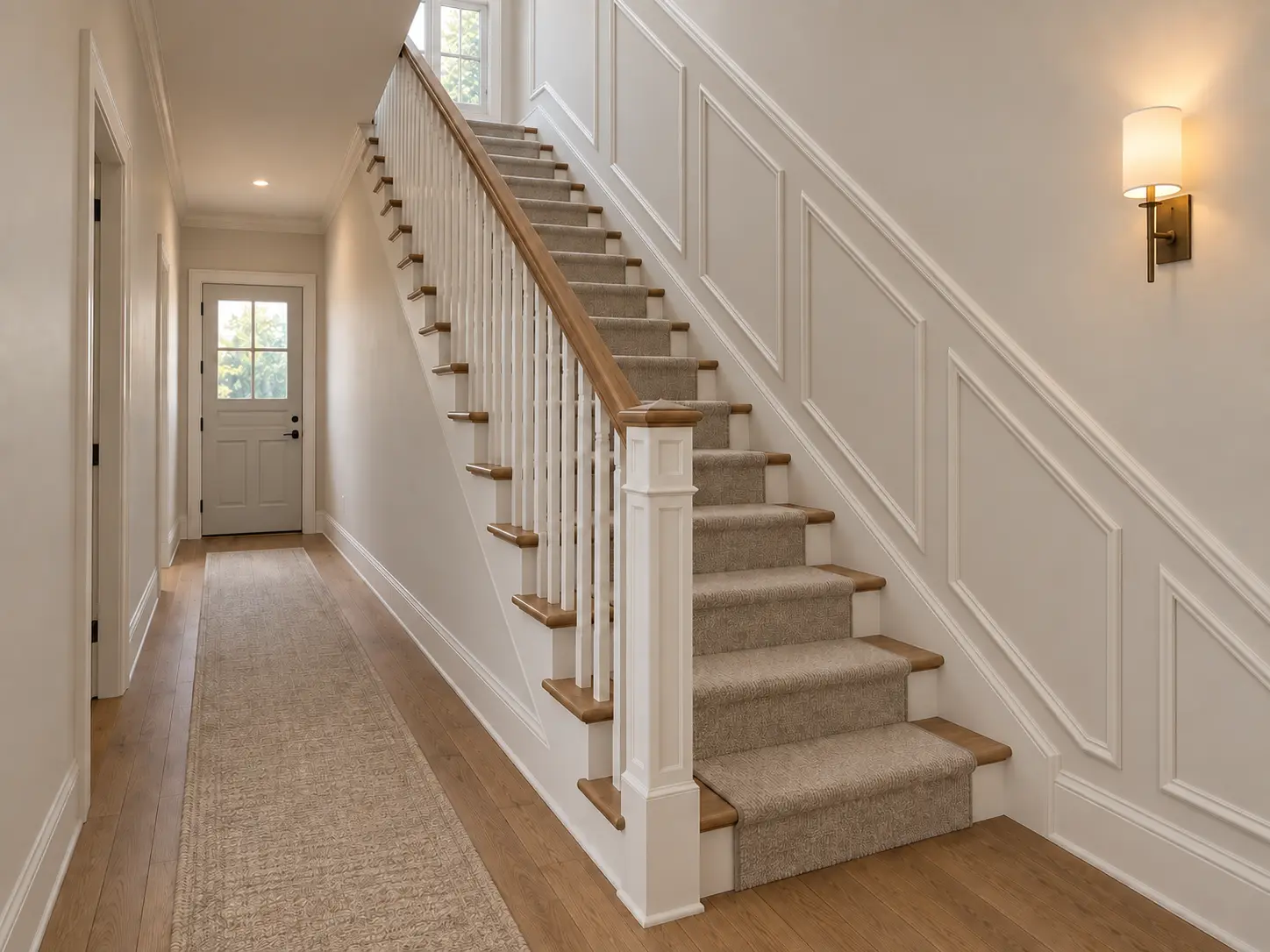

Step rectangular panel frames with the stair pitch. Keep top and bottom rails parallel with the stringer and repeat equal visual margins at every tread group.
- Material / finish
- Painted poplar panel molding and chair rail
- Default species
- Poplar
- Nominal sizes
- 10 ft wide by 18 ft long stair hall, 9 ft floor-to-floor rise, 15 risers at 7.2 in, 14 treads at 10 in, stair rises north along the east wall. Lower hall door on west wall behind camera; stair feature wall uninterrupted; upper landing guard outside crop. The molding rails remain parallel to the stair stringer, not level; vertical legs remain plumb. Field measurement required before material release.
- Milled parts
- 5
- Material package
- ASM-FINISH-F40-MAT
- Labor package
- ASM-FINISH-F40-INST
- Planning crew hours
- 20
Installed labor scope
- Field measure and site-condition reviewLAB-WALL-SURVEY-EA1 per design area
- Mobilization, protection and containmentLAB-WALL-PROTECT-EA1 per mobilization
- Substrate prep, flattening and patchingLAB-WALL-PREP-SFNet treated SF
- Pattern layout, datum setup and elevation verificationLAB-WALL-LAYOUT-EA1 per design area
- Install beams, trim, rails, stiles and mouldingsLAB-FLD-TRIM-LFInstalled millwork LF
- Prep, prime, caulk and apply two finish coatsLAB-FIN-PAINT-SFCalculated finishable surface SF
- Final detail, cleanup and turnoverLAB-WALL-CLEAN-EA1 per project
Activities are tied to this installed package. Crew size, production rates, minimums and sell rates remain estimator-approved quote inputs.
Baseline material package
- Raking panel mouldingMLD-PM-1.251 planning line; LF quantity by approved field takeoff
- Chair railMAT-CHAIR-RAIL1 planning line; LF quantity by approved field takeoff
- Installation consumablesCONS-FAST-ADH1 planning line; SET quantity by approved field takeoff
- Joint finishingCONS-CAULK-FILL1 planning line; SET quantity by approved field takeoff
- Paint finishFIN-PAINT-SYSTEM1 planning line; SF quantity by approved field takeoff
Planning codes and baseline purchase quantities are tied to this design. Spruce item numbers, current pricing and field-adjusted quantities are confirmed during estimating.
Design reference only. Exact products, quantities, fabrication and installation need project review before ordering.
Plan your measurements
Add the room, wall or opening sizes for this look. Your measurements help us review the material package and any installation you request.
Plan this selection
Choose what you are measuring, then enter its size. Use a separate group for each different wall, room or opening.
This design is awaiting material and pricing review. The quantities below are preliminary and must be checked before ordering. Request a reviewed material and installation quote.
Planning assembly SKUs, component codes, construction geometry, cut-list rules, waste factors and labor activities are tied to this design. Exact active Spruce item numbers, purchase units, verified quantities, appliance clearances and labor rates require estimator approval before ordering or quoting.
Size group 1 · 1 identical item
| Component | Quantity | Material |
|---|---|---|
| Raking panel mouldingPaint-grade poplar panel moulding · PoplarComponent 1 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
| Chair railPaint-grade poplar chair rail · PoplarComponent 2 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
| Installation consumablesCompatible adhesive, finish fasteners, shims and blocking accessories · PoplarComponent 3 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
| Joint finishingPaint-grade filler, caulk and abrasives · PoplarComponent 4 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
| Paint finishPrimer plus two approved finish coats · PoplarComponent 5 · exact product and account price to confirm | Detail review requiredPurchase quantity: review requiredChecking pricing… | Checking pricing… |
Installation and delivery require a separate quote. Stock lengths, cuts, fasteners, finishing and site conditions are confirmed during review.
What needs review
- This component’s quantity formula needs a reviewed construction detail.
- Set contents and quantities require a reviewed assembly definition.
- This design’s bill of materials and public pricing need verification.
Copy your measurements, then paste them into the project notes on the request form. Your design reference is included automatically.
